Plant and Facilities Layout Whiteboard Kit

Design and change space plans on a magnetic whiteboard

Caption goes here.

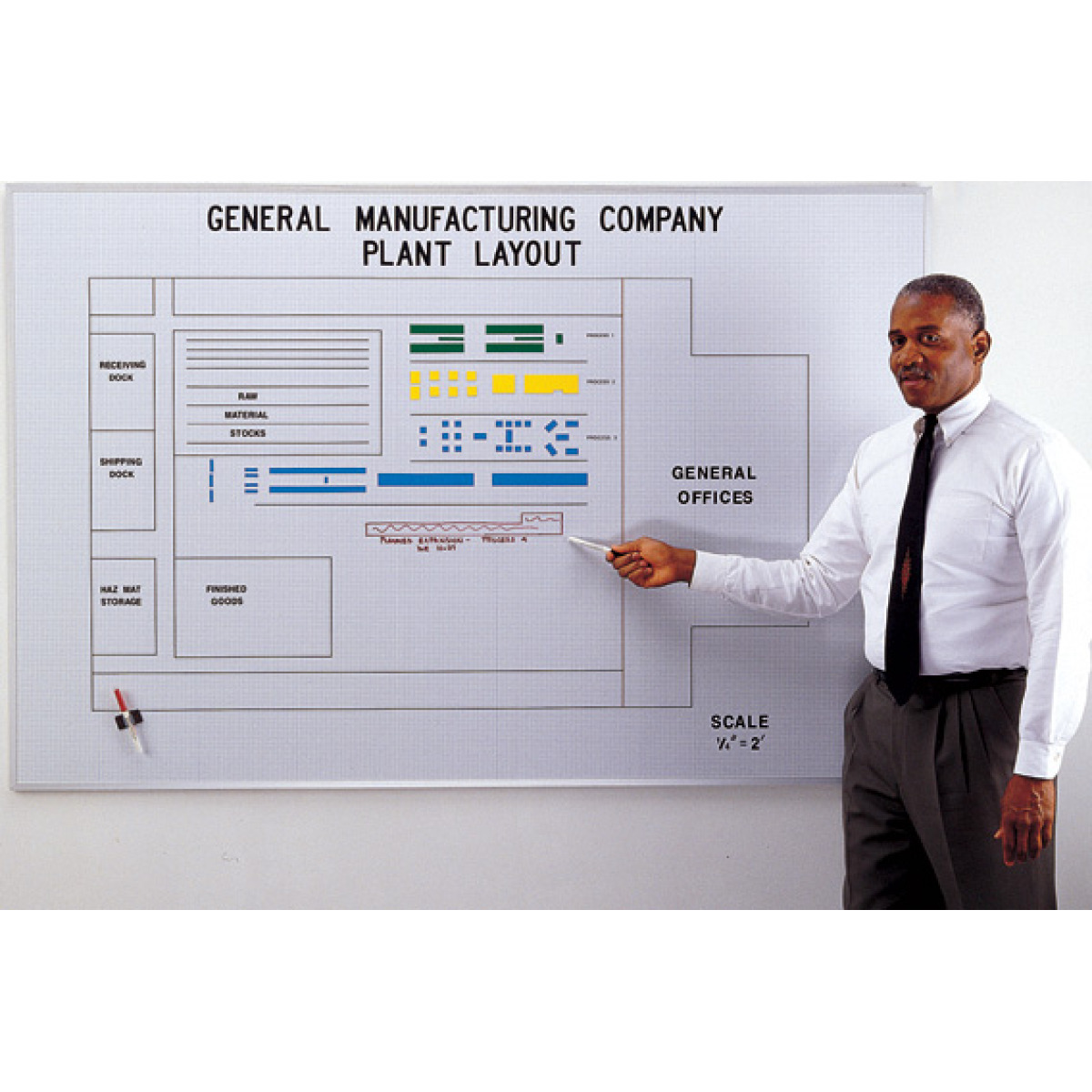

Experiment with various layouts of plant floor plans
Displayed on a high quality, dry erase, magnetic whiteboard
Our factory floor layout plan kit is the perfect tool to plan for expansion or re-organization
Also used in detailed scheduling and planning tasks
The grid pattern whiteboard and everything you need is included
Floor plan board includes FREE Supply Kit - see Detailed Description below

NOTE: Aluminum frame is standard. For a limited time, choose wood frame at checkout, in 4 color options, at no additional cost.

Sizes & Pricing

Step 1:Select Part # to Continue
Step 1:Select Option to Continue

Board Size H' x W'

Board Size H' x W'	Ships Via	Board with Kit
Board Size H' x W'	Ships Via	Part #	Price
4' x 6'	Truck	80790	$1,216.47

* Price includes a Supply Kit of useful accessories

Additional Information

Detailed Description

The grid pattern whiteboard and everything you need is included
Design, re-design work areas with magnets and charting tape
Plot your walls and other space separators using the Charting Tape
Then place machines, equipment, production lines, and work cells using our Break-Apart Magnets (or use colored tape or dry-erase markers)
Sketch and evaluate proposals with Dry-Erase Markers in just minutes
Long lasting, dry-erase, highly durable whiteboard surface
Layout your plan using color Magnets, Charting Tape, Dry-Erase Markers, lettering

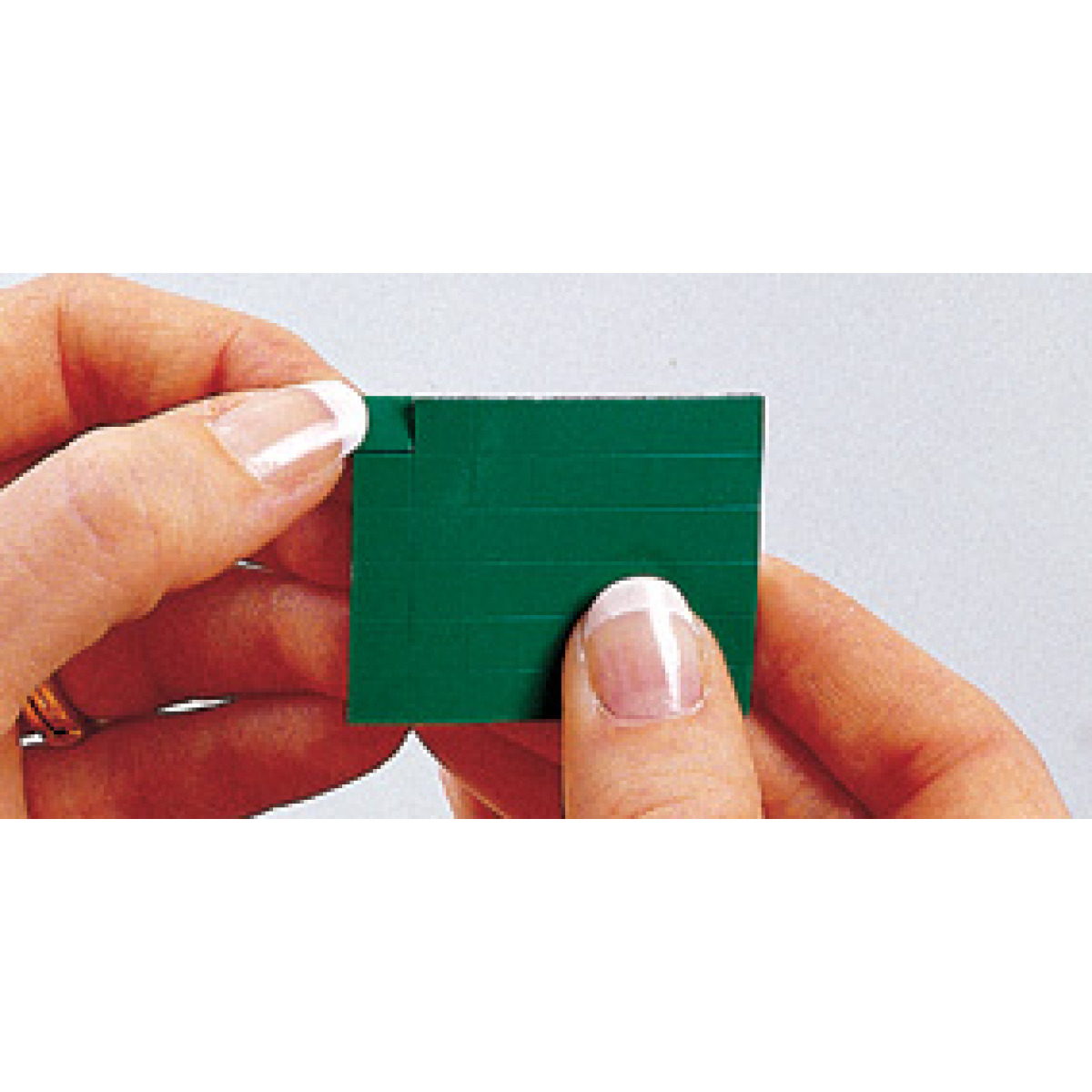

Break-Apart Magnets are scored for easy contouring to your size of equipment or other markings
Factory floor layout plan kit includes FREE kit of whiteboard supplies:
- 4 Break-Apart Magnet 8x10 sheets - red, yellow, green blue
- 12 Dry-Erase Markers - fine point red, blue, green, black
- Adhesive Letter & Number Sets - 1/2" & 1" black
- 8 Rolls Charting Tape - three 1/8" black, one 1/8" red, three 1/16" black, one 1/8" red
- Accessory Storage Box
- Magnetic Penholder
- Magnetic Eraser
- Hanging Hardware

Tech Specs

High quality magnetic whiteboard in an aluminum frame
Intense heat permanently fuses your color graphics design with a sheet of solid steel to produce a highly durable, brilliant, dry-erase magnetic surface
Our process produces a sturdy three-layer construction - the steel is laminated onto a rigid engineered wood foundation and backed with a sheet of aluminum foil as a protective moisture barrier
WILL NOT STAIN, FADE, SHADOW OR CRACK
No surface blemishes that are commonly seen on inferior whiteboards
Our Polymer Fusion™ Process creates a long lasting, custom magnetic surface
Floor plan board maintains its "like new" appearance throughout years and years of daily use
This specialized process produces the most durable of any color printed whiteboard surface available in the market today!
Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation
Service temperature range = -10F to +160F
Floor plan board is made for indoor use
Class C Fire rated
Aluminum frame: Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion, framed board weighs 2.7 lbs per square foot, depth from board surface face to wall = 9/16" (14.3 mm)
Wood frame: color stained and sealed ash, framed board weighs 3.1 lbs per square foot, depth from board surface face to wall = 15/16" (23.8 mm)

Options

Special sizes - contact Customer Service for quote
Order 4'x6' factory floor layout plan board with 1/4" grid pattern only (no kit) - P/N 80793, $749.
Break-Apart Magnets available in 11 colors - white, yellow, orange, blue, green red, gold, silver, ivory, brown, black
Additional Break-Apart Magnet 8x10 sheets - P/N 94025B, $38.50 (indicate color)
Additional whiteboard supplies - see Whiteboard Supplies
Magnetic letters, numbers, symbols, card holders, clips - see Magnetic Accessories
