Warehouse Locator System Kit
Warehouse Locator System Kit
Organize and quickly locate stock, pallets, open storage and more
Warehouse Locator System Kit
Organize and quickly locate stock, pallets, open storage and more
- Communicates open storage, stock locations, stock depletion, reserve space
- Magnetic Stock Locators with channel hold cards listing stock number, product name and warehouse location
- At each stock location (rack, pallet, shelf, floor space) a corresponding clear vinyl Location Pouch holds card tags for that location and the stock currently stored there
- The pouches are adhesive backed since they remain at that space
- Grid pattern background
- For more information, see the 'How the System Works' section below
- Our inventory locator includes a FREE Supply Kit - see Detailed Description below
NOTE: Aluminum frame is standard. For a limited time, choose wood frame at checkout, in 4 color options, at no additional cost.
Sizes & Pricing
Step 1:Select Part # to Continue
Step 1:Select Option to Continue
| Stock Locator Capacity | Board Size H' x W' | # Stock Locators Included | # Location Pouches Included | # Stock & Location Tags Included | Ships Via | System with Kit | |
|---|---|---|---|---|---|---|---|
| Part # | Price | ||||||
| 90 | 2' x 3' | 50 | 75 (150 - 2 per location) | 1000 | UPS | 22350 | $506.11 |
| 275 | 3' x 4' | 125 | 150 (300 - 2 per location) | 2500 | Truck | 22570 | $875.27 |
| 435 | 4' x 6' | 225 | 250 (500 - 2 per location) | 4500 | Truck | 22790 | $1,439.75 |
| 600 | 4' x 8' | 300 | 325 (650 - 2 per location) | 6000 | Truck | 22701 | $1,845.67 |
* Price includes a Supply Kit of useful accessories
Additional InformationDetailed Description Tech Specs Options Warehouse Locator System Components
Customer Comments:
- Warehouse Locator System Applications
- Receiving, staging and shipping areas of material handling and storage facilities
- Material and product holding areas for manufacturers
- Create a board design for your inventory locating requirements
- Grid pattern background on surface to position Magnetic Card Holders and pouches
- Change placement of lines
- Define your own row designations (leftmost column) and column headers
- Displayed on a high quality, dry erase, magnetic whiteboard
- Inventory locator boards include hidden hanger slots on back
- Our inventory locator includes a FREE kit of whiteboard supplies:
- Stock & Part Locators - magnetic, clear vinyl pouches
- Location Pouches - adhesive, clear vinyl
- Location Tags - white and yellow datacards
- Adhesive Letter Set - column headings
- Charting Tape - align placement of tags and pouches
- Hanging Hardware
- How the Inventory Locator System Works:

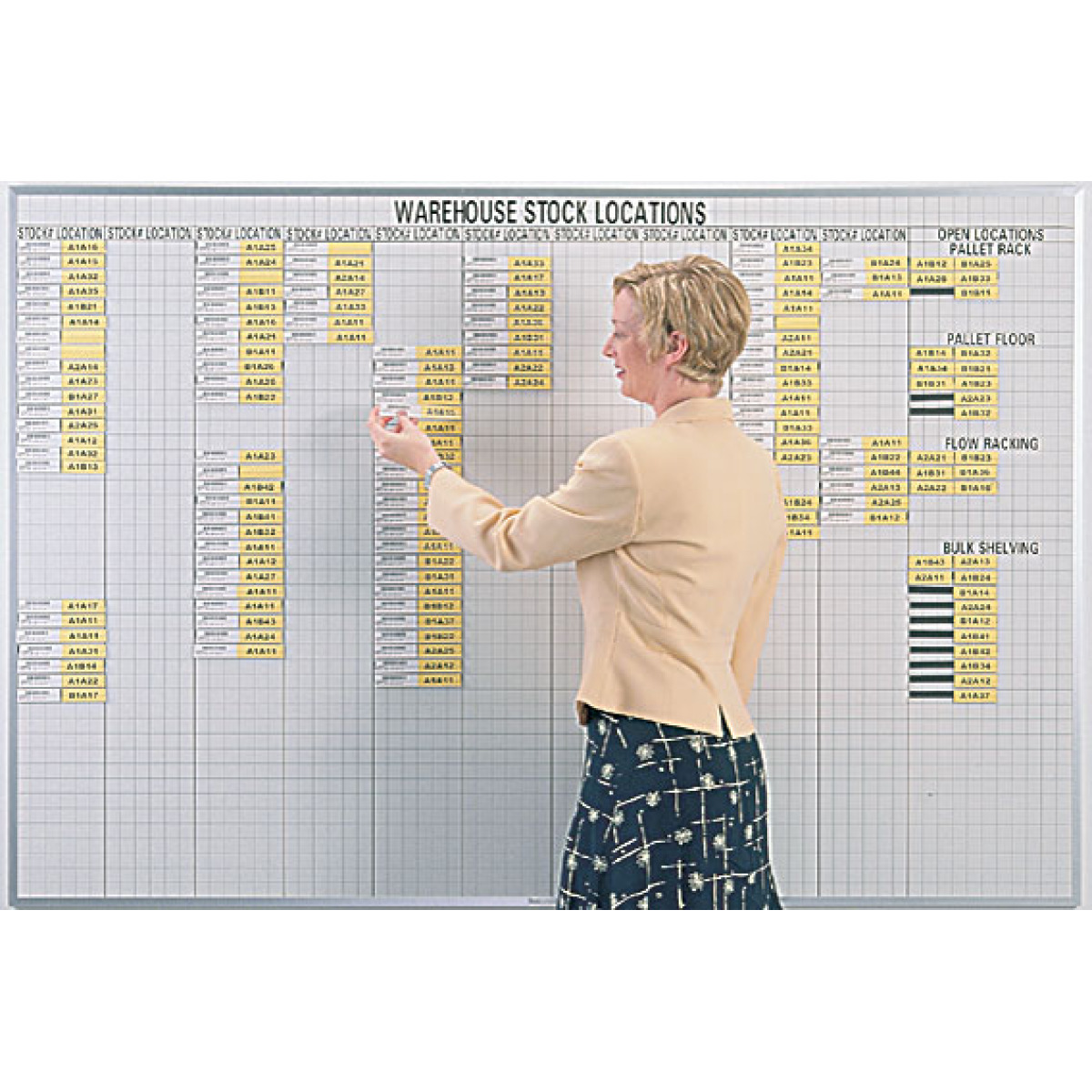

- The inventory board system uses magnetic Stock Locators with a sliding channel to hold tags for the stock number/name information and tags for the warehouse location code where the stock is to be stored. These magnetic Stock Locators are arranged either numerically or alphabetically on the Warehouse Locator Board.
- If you have not already done so, each warehouse storage location needs to be numbered with a code that makes it easy to identify that location, ex: A2B4A for Building A, Area 2, Rack B, Section 4, Level A.
- A map of the warehouse showing all these location codes is very helpful and can be mounted next to the board for quickly finding locations.
- At each work location (pallet rack, bulk shelving, bin location, floor location, etc.), a corresponding clear vinyl, adhesive backed Location Pouch holds tags for the location code and the stock number currently stored there.
- New Stock Received
- Take packing list to board, match stock number, find Part Locator for that stock number
- If there is a location already assigned, flip Location Tag over such that the location is shown on the Part Locator Otherwise, assign a new location from open locations
- Remove a Stock Tag from the Part Locator, place in Location Pouch at the storage location while storing the item being stocked there
- Locate Stock
- Find stock number on board and determine storage location
- Consult warehouse map to determine exact location if necessary
- Remove stock (as an option, write quantity removed on the Stock Tag)
- Take Last of Stock
- Find stock number on board and determine storage location
- Consult warehouse map to determine exact location if necessary
- Remove last of stock and remove Stock Tag
- Take Stock Tag and place back in Part Locator
- Flip Location Tag on the Part Locator over to blank side
- Includes Supply Kit:
- 3/4" Adhesive Letter Set - black
- 3/4"x3" Clear Pouch Card Holders
- 1"x3" Datacards - white, yellow
- 1"x6" Write-on/Wipe-off Magnets - white
- 1/16" Charting Tape roll - black
- Hanging Hardware
- High quality magnetic whiteboard in an aluminum frame
- Intense heat permanently fuses your color graphics design with a sheet of solid steel to produce a highly durable, brilliant, dry-erase magnetic surface
- Our process produces a sturdy three-layer construction - the steel is laminated onto a rigid engineered wood foundation and backed with a sheet of aluminum foil as a protective moisture barrier
- WILL NOT STAIN, FADE, SHADOW OR CRACK
- No surface blemishes that are commonly seen on inferior whiteboards
- Our Polymer Fusion™ Process creates a long lasting, custom magnetic surface
- Maintains its "like new" appearance throughout years and years of daily use
- This specialized process produces the most durable of any color printed whiteboard surface available in the market today!
- Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation Service temperature range = -10F to +160F
- For indoor use
- Class C Fire rated
- Aluminum frame:
- Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion
- Framed board weighs 2.7 lbs per square foot
- Depth from board surface face to wall = 9/16" (14.3 mm)
- Wood frame:
- color stained and sealed ash
- Framed board weighs 3.1 lbs per square foot
- Depth from board surface face to wall = 15/16" (23.8 mm)
- Custom sizes, graphics and designs - contact Customer Service for quote
- Additional Stock Locator - 1"x6", holds 2 tags, magnetic, P/N 22001, $40/pkg 25
- Additional Location Pouch - 2"x3", holds 2 tags, adhesive, P/N 22011, $20/pkg 25
- Additional Location Pouch - 2"x3", holds 2 tags, magnetic, P/N 22021, $55/pkg 25
- Additional Location Pouch - 1"x6", holds 2 tags, adhesive, P/N 22010, $20/pkg 25
- Additional Location Pouch - 1"x6", holds 2 tags, magnetic P/N 22020, $55/pkg 25
- Additional Laser Tag - 1"x3", specify color if not white, P/N 90324L, $15/pkg 520 tags
- Lining tape, letter/number sets, additional markers - see Whiteboard Supplies
- Additional magnets, card holders, clips - see Other Magnetic Accessories
- NOTE - adhesive Location Pouches are supplied as 1" x3" pouches and you use two for each location

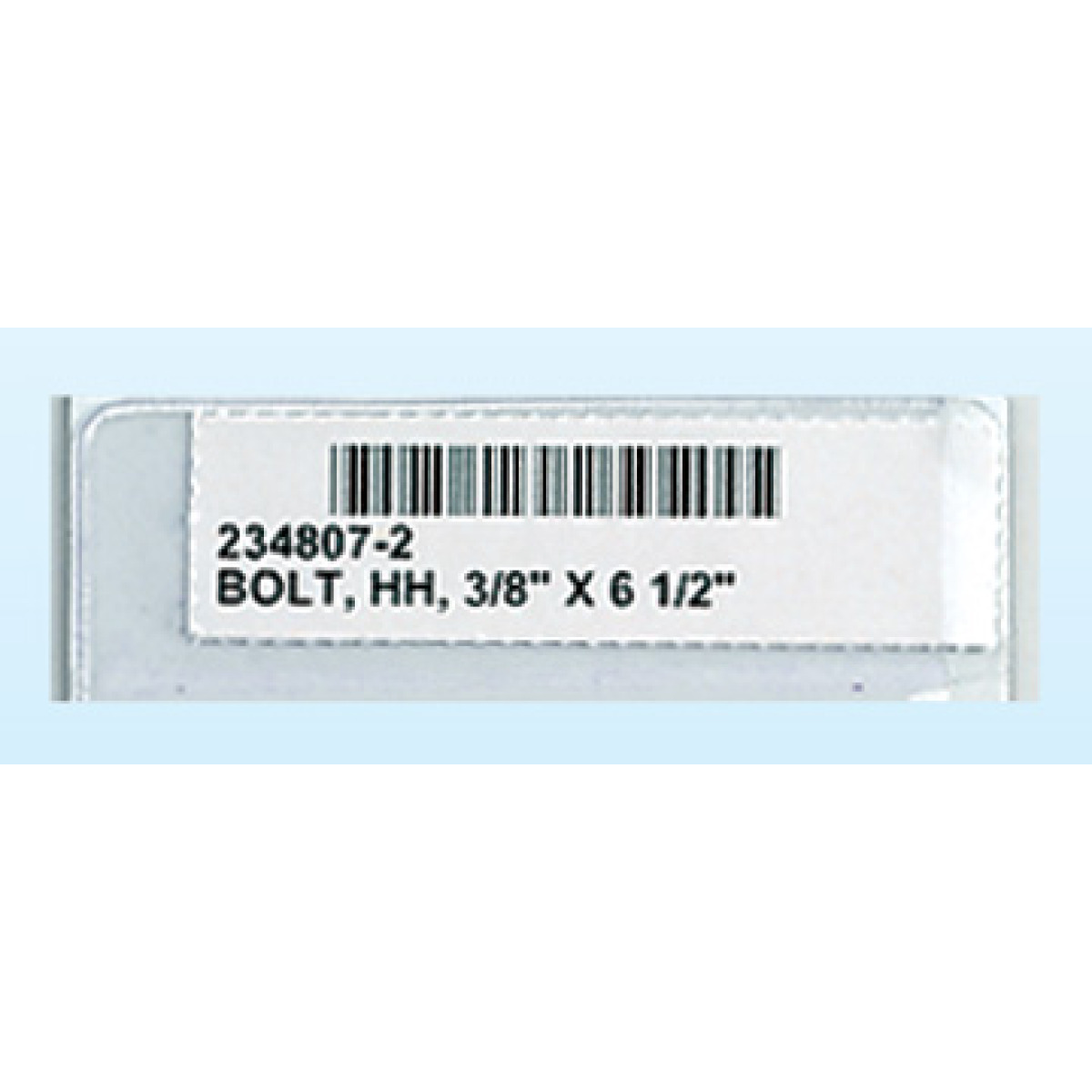

| Location Pouch |
 |
| 1"x3" adhesive with card |

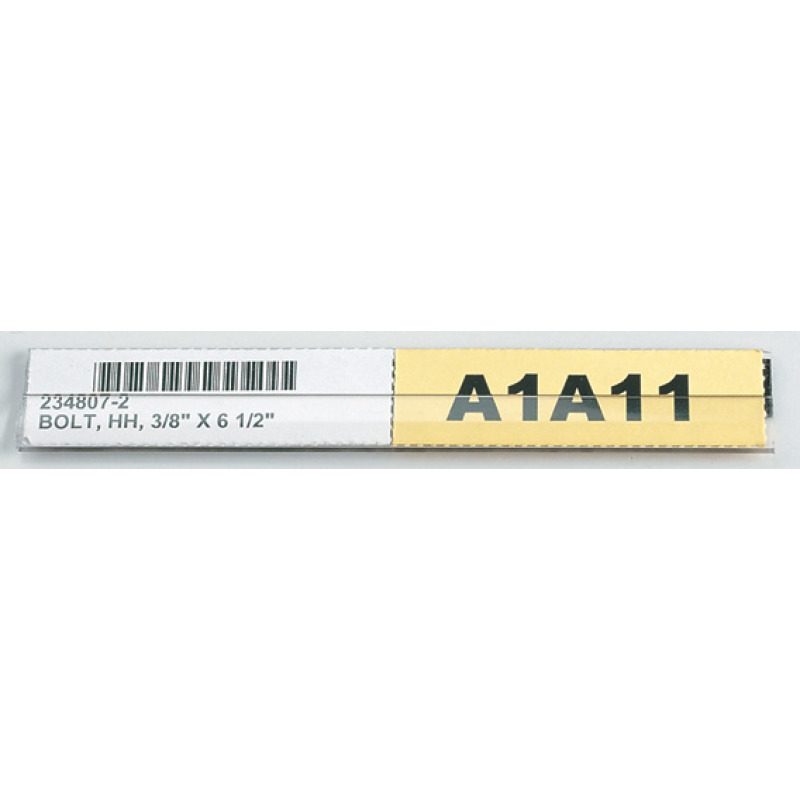

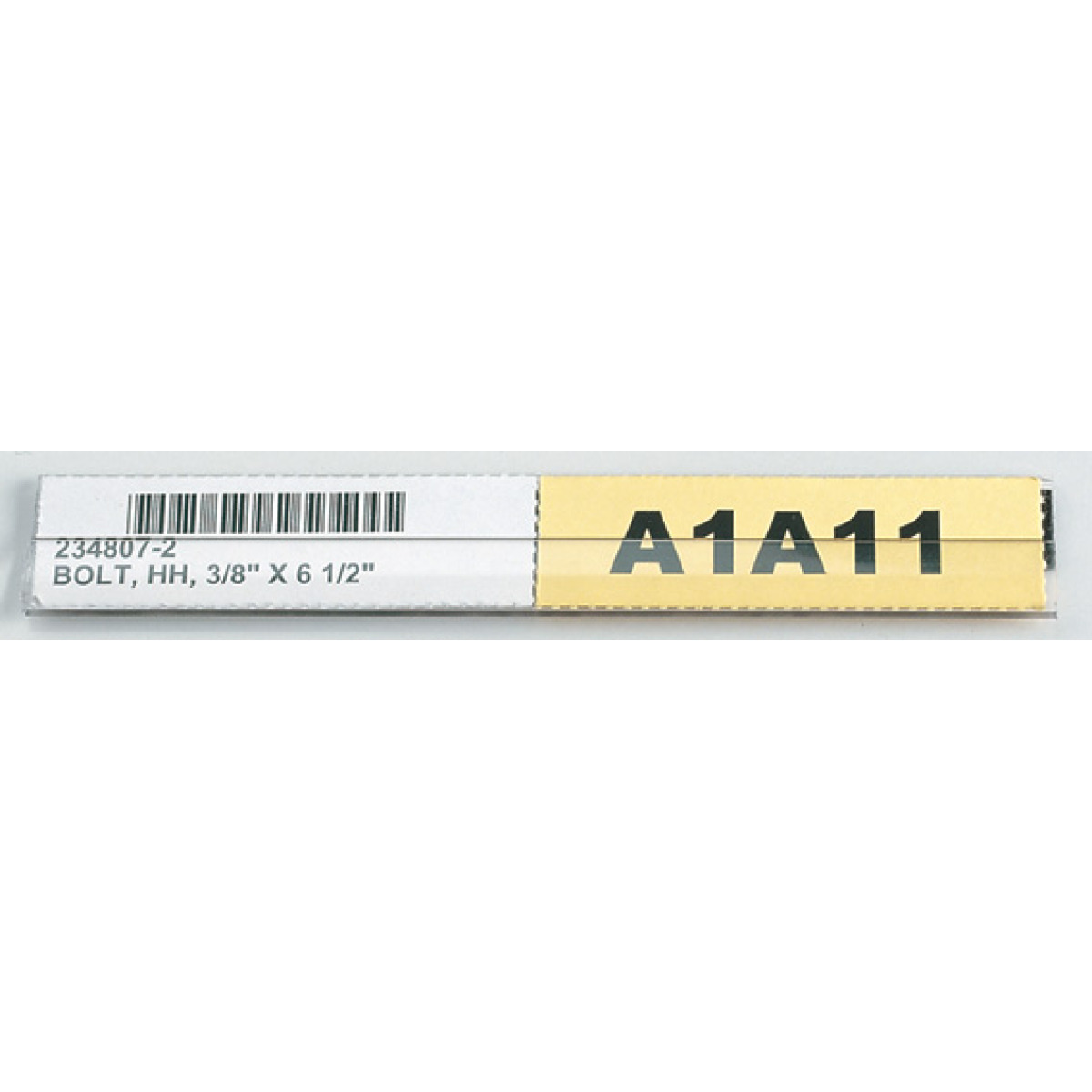

| Part Locator |
 |
| 1"x6" magnetic with card |
