T-Card Kanban Whiteboard System
T-Card Kanban Whiteboard System
Easily implement Kanban throughout your facility
T-Card Kanban Whiteboard System
Easily implement Kanban throughout your facility
- This T-card board system is designed to specifically manage Kanban production processes
- T-cards are placed in magnetic, white plastic, card holders which adhere to a magnetic whiteboard
- Each holder column has slots for up to 39 kanban signal T-cards
- Select the number of cards and slots you need and that determines the optimal board size required
- Quickly create your own layout design with our magnetic T-card slot holders
- Available in either a wall mount or roll-around style
- This Kanban whiteboard includes a FREE Supply Kit - see Detailed Description below
Sizes & Pricing
Step 1:Select Style
Step 2:Select Part # to Continue
Step 2:Select Option to Continue
| Board Size H' x W' | # of Card Holder Columns | # Card Slots per Column | System with Kit | |
|---|---|---|---|---|
| Part # | Price | |||
| 4' x 2' | 5 | 39 | 28731N | $463.00 |
| 4' x 3' | 8 | 39 | 28751N | $620.28 |
| 4' x 5' | 13 | 39 | 28781N | $1,002.12 |
| Board Size H' x W' | # of Card Holder Columns | # Card Slots per Column | System with Kit | |
|---|---|---|---|---|
| Part # | Price | |||
| 4' x 2' | 5 | 39 | 28731NR | $978.65 |
| 4' x 3' | 8 | 39 | 28751NR | $1,211.10 |
| 4' x 5' | 13 | 39 | 28781NR | $1,330.64 |
NOTE: Other board sizes and holder configurations are available, call for quote
* Price includes a Supply Kit of useful accessories
* Price includes a Supply Kit of useful accessories
Additional InformationDetailed Description
Tech Specs Options Customer Comments:
 |

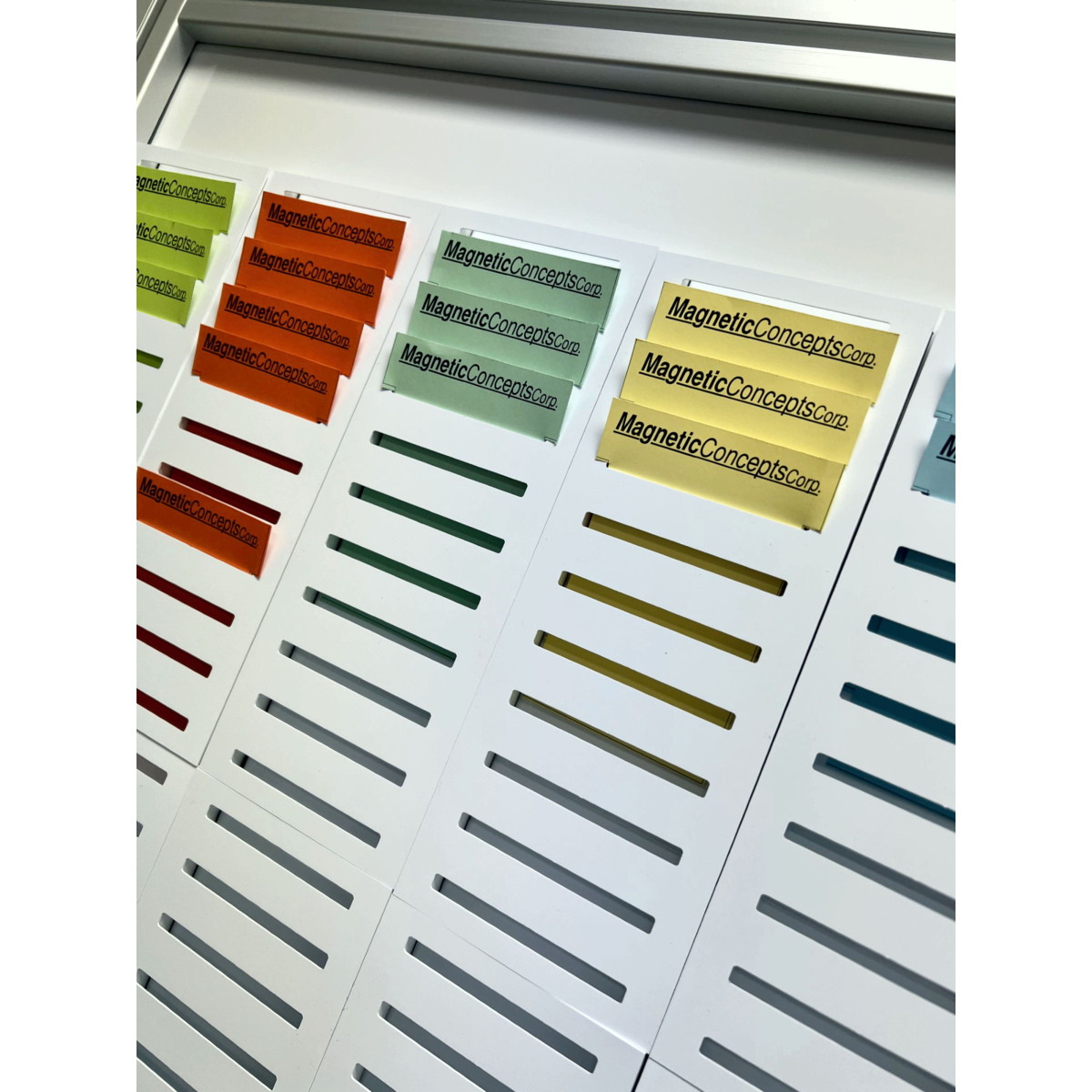

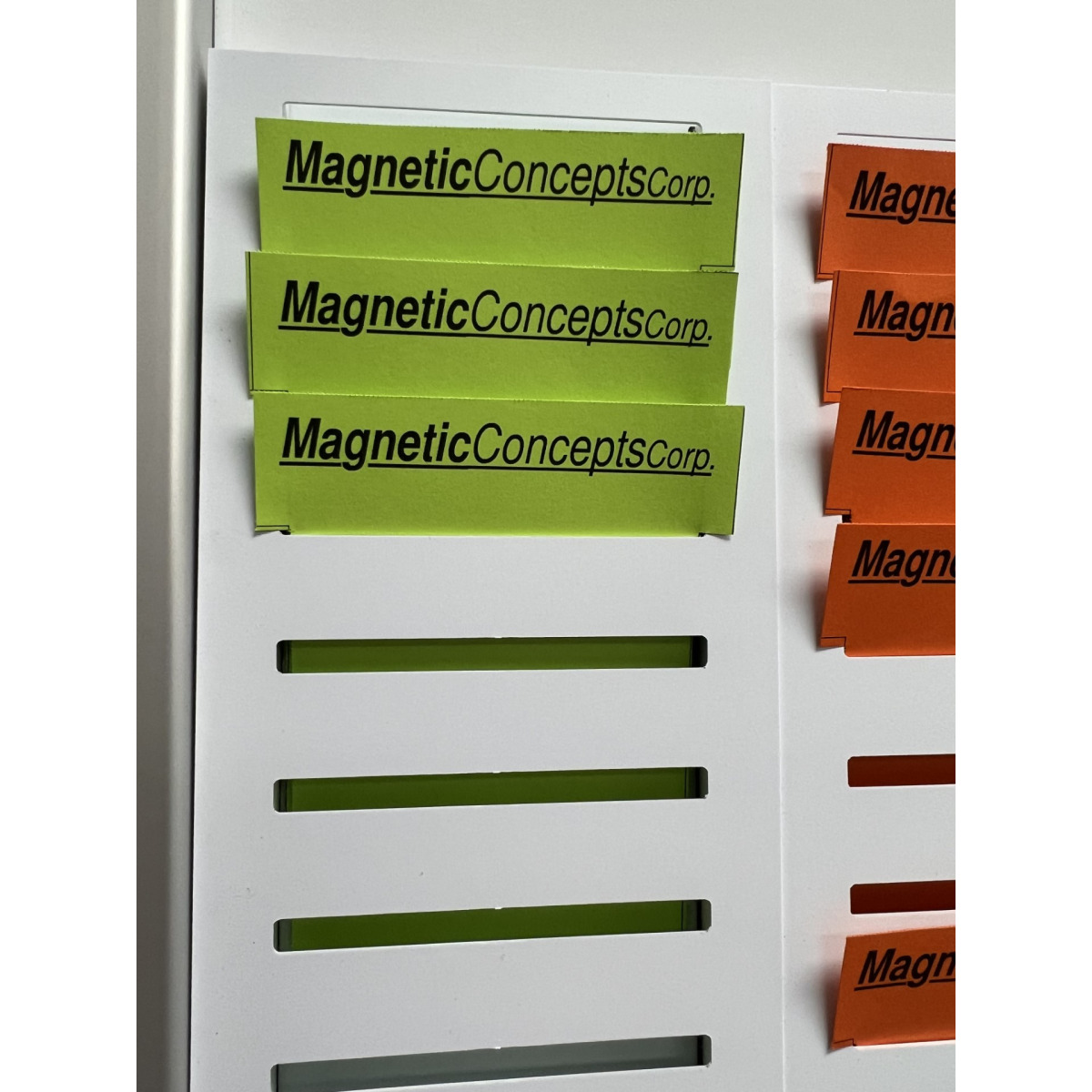

| T-Card Holder example |
- Columns of slotted, white plastic, magnetic T-card holders affixed to a mounting board
- Color T-cards to track production efficiency
- Arrange T-cards by part and production status or shift
- Classic T-Card Kanban Application
- Each column represents a unique part
- The number of T-cards x the quantity indicated on the card is the the maximum inventory level for that part
- A green tape level (lining tape) sets the number of T-cards for the allotted inventory
- A yellow tape level indicates when additional parts need to be produced
- A red tape level shows if it is time for emergency or immediate production
- Remove cards from the board as a signal to produce more of a particular part
- The T-card board system can also be adapted to your particular Kanban processes
- This Kanban whiteboard includes a FREE kit of whiteboard supplies:
- Magnetic T-Card Holders - white base and add-ons, plastic, 1" slot spacing
- Laser T-Cards - white, yellow, lime, blue, salmon
- Adhesive Letter Set - 1" black for title and column headers
- Charting Tape rolls - 1 each green, red, yellow to indicate Kanban levels
- Hanging or Rolling Assembly and Chalktray Hardware
- Roll-Around style overall height with frame and casters is approximately 76"
- Whiteboard construction is 0.022" coated sheet of solid steel laminated onto a rigid 1/4" hardboard foundation
- Service temperature range = -10F to +160F
- This T-card board system is made for indoor use
- Class C Fire rated
- Aluminum frame: High strength, satin anodized aluminum alloy in an industry standard 45mm square with 10mmT-slot design
- Locking caster sets are load rated to support at least double the weight of the board assembly for ease of rolling and safety
- Available in wall mount and roll-around styles
- Pre-printed T-Cards - see T-Cards for pricing
- Additional Whiteboard Tape, Letter/Number Sets - see Whiteboard Supplies
- We will customize a board design for your Kanban style application
- Boards are available in both wall mount and roll-around styles
- T-cards, adhesive lettering and color lining tape are included with the board system - see Classic T-Card Kanban Application in Detailed Description
- This personal Kanban board can be customized to fit your needs
