Magnetic Whiteboard Panels

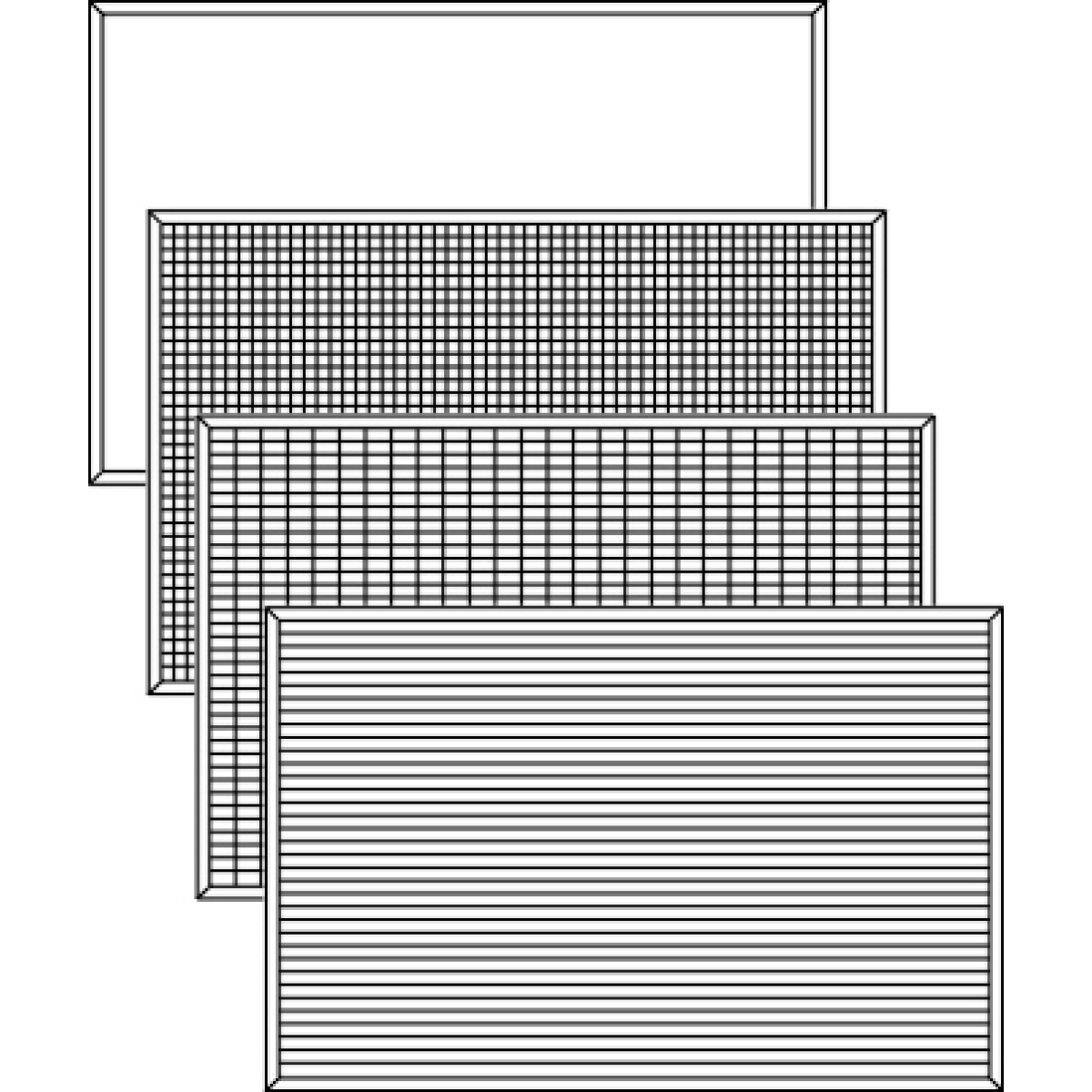

Plain, gridded and lined magnetic dry erase panels
Magnetic Whiteboard Panels
Plain, gridded and lined magnetic dry erase panels
- You can get our high grade professional magnetic whiteboard panels a la carte without a Supply Kit included, then add needed supplies and accessories separately
- Very durable, dry-erase, non-stain, professional magnetic whiteboard panels
- Ruggedly constructed to provide years of uninterrupted use
- Magnetic dry erase panels up to 6' wide are supplied with hidden double hanger sets for mounting
- A package of drywall anchors and screws is included with our whiteboard panel kit for standard mounting
NOTE: Aluminum frame is standard. For a limited time, choose wood frame at checkout, in 4 color options, at no additional cost.
Sizes & Pricing
Step 1:Select Part # to Continue
Step 1:Select Option to Continue
| Board Size H' x W' | Ships Via | Board Only | |
|---|---|---|---|
| Part # | Price | ||
| 1-1/2' x 2' | UPS | 91230 | $181.68 |
| 2' x 2' | UPS | 91330 | $213.93 |
| 2' x 3' | UPS | 91350 | $252.63 |
| 2' x 4' | UPS | 91370 | $299.93 |
| 2' x 6' | Truck | 91390 | $396.68 |
| 3' x 3' | UPS | 91550 | $327.88 |
| 3' x 4' | Truck | 91570 | $396.68 |
| 3' x 5' | Truck | 91580 | $483.75 |
| 3' x 6' | Truck | 91590 | $548.25 |
| 4' x 4' | Truck | 91770 | $489.13 |
| 4' x 5' | Truck | 91780 | $612.75 |
| 4' x 6' | Truck | 91790 | $671.88 |
| 4' x 8' | Truck | 91701 | $896.98 |
| 4' x 12' | Truck | 91705 | $1,241.84 |
1. Sizes over 8' long are available in plain white surface only
2. Specify panel surface style and color with order:
• Plain white
• 1" x 1" gridded
• 1" x 2" gridded
• 1" lined
2. Specify panel surface style and color with order:
• Plain white
• 1" x 1" gridded
• 1" x 2" gridded
• 1" lined
Additional InformationDetailed Description Tech Specs Options Customer Comments:
- Dry-erase, non-stain surface on three layer substrate of steel, wood & aluminum
- Framed in satin finish aluminum channel for the ultimate in durability and appearance
- Plain - white 1"x1"
- Gridded - white 1"x2"
- Gridded - white, 2" wide pattern runs horizontally only
- 1" Lined - white, lines run horizontally only
- Sizes over 8' long are available in plain white surface only
- Specify panel surface style and color with order
- Magnetic dry erase panels are available with a multitude of options - see the list of Options
- High quality magnetic whiteboard in an aluminum frame
- Intense heat permanently fuses your line graphics design with a sheet of solid steel to produce a highly durable, brilliant, dry-erase magnetic surface
- Our process produces a sturdy three-layer construction - the steel is laminated onto a rigid engineered wood foundation and backed with a sheet of aluminum foil as a protective moisture barrier
- WILL NOT STAIN, FADE, SHADOW OR CRACK
- No surface blemishes that are commonly seen on inferior whiteboards
- Our Polymer Fusion™ Process creates a long lasting, custom magnetic surface
- Maintains its "like new" appearance throughout years and years of daily use
- This specialized process produces the most durable of any color printed whiteboard surface available in the market today!
- Construction is 0.022" coated sheet of solid steel laminated onto a rigid 3/8" MDF engineered wood foundation
- Service temperature range = -10F to +160F
- These professional whiteboard panels are for indoor use only
- Class C Fire rated
- Aluminum frame: Satin anodized extrusion of 6063 Aluminum-Magnesium-Silicon alloy which is extremely resistant to cracking and corrosion, framed board weighs 2.7 lbs per square foot, depth from board surface face to wall = 9/16" (14.3 mm)

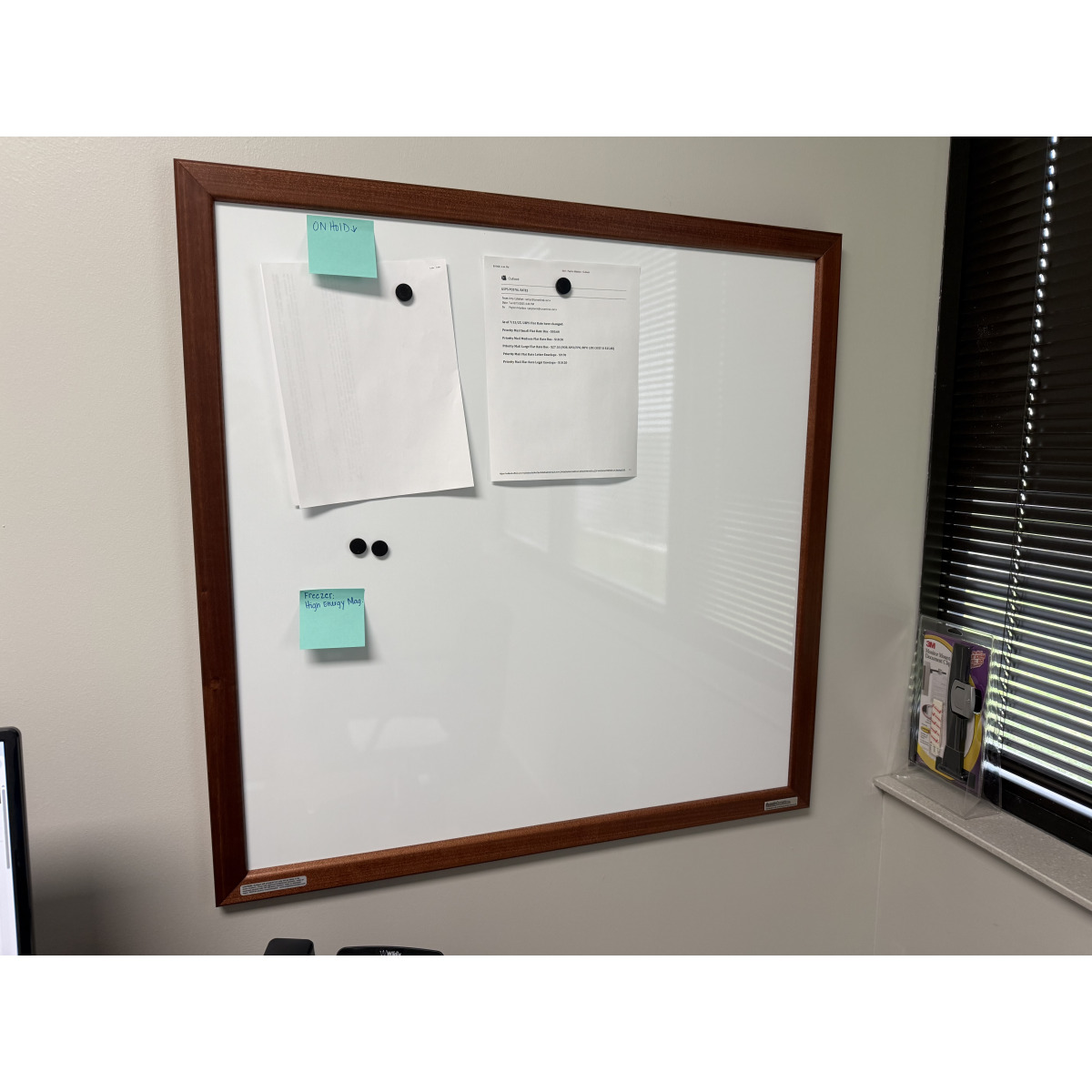

- Optional wood frame: color stained and sealed ash, framed board weighs 3.1 lbs per square foot, depth from board surface face to wall = 15/16" (23.8 mm)
- Panels may also be hung vertically, however you must indicate that preference with your order such that the installed hanging brackets are properly positioned
- Color surfaces are also available as a Custom Whiteboard
- Custom lining - lines added according to your specifications
- Custom lettering - computer-cut color vinyl
- Custom Whiteboard graphics - contact Customer Service for quote
- Wood frame - Natural Oak, Walnut, Cherry, Black Stains; add 20% to price above
- Partition hangers - fits over the top of a standard 2" thick partition, holds up to a 3'x4' size, P/N 90452, $14. per set of 2
- Whiteboard Skin only - plain surface whiteboards (dry erase whiteboard on steel with no backing) are available for re-surfacing applications, sizes up to 4'x8', price is 60% of panel prices above
- Panels also made to your desired specific size - see Custom Size Whiteboards
- Magnetic & Whiteboard Accessories Chalktray - full length (width) of panel, to order simply add a T to the end of the panel Part Number, $6.50 per foot
- Accessory Pack includes:
- Write-on/Wipe-off Magnets, Adhesive Letter Sets, Whiteboard Tape, Magnetic Chalktray, and Magnetic Eraser, to order simply add an X to the end of the panel Part Number, $21. for panels 2'x3' or smaller, $100. for panels up to 4'x12'
- Complete Whiteboard Accessory Kit - see Whiteboard Accessory Kit
- Lining tape, eraser, chalktray, letter/number sets, markers - see Whiteboard Supplies
- Magnetic letters, symbols, card holders, clips - see Other Magnetic Accessories
